SM-370-HA
Flatbed Multi-Tool Welding Machine
Flatbed Welding Machine for Truck Tarpaulins

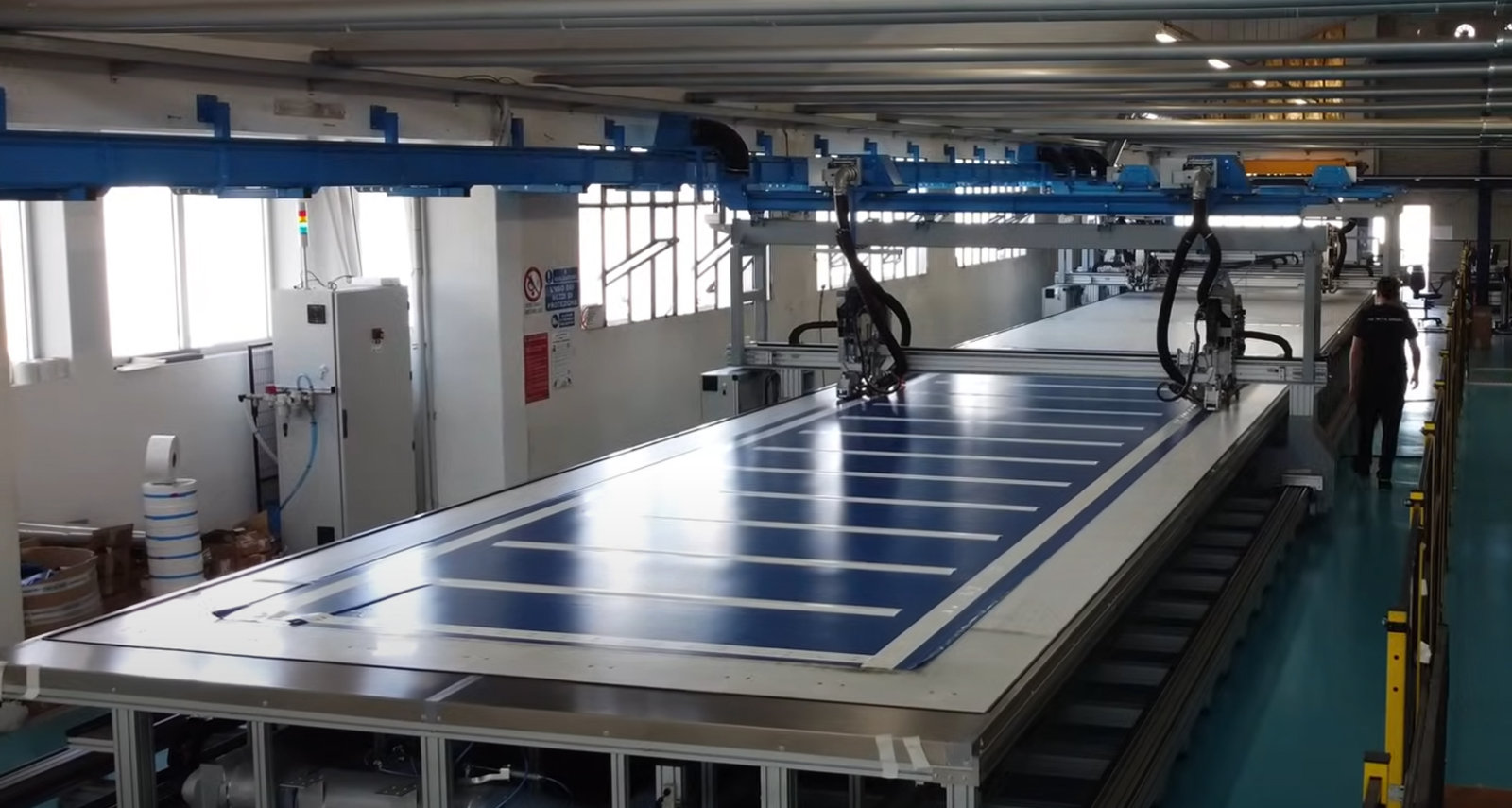

The SM-370-HA is a multi-bridge welding system, specifically designed for automated production of truck tarpaulins, including anti-vandalism covers and roofs. Introduced in 2016 and continuously evolving, this machine stands as the fastest and most efficient solution on the market, drastically reducing production times to record levels.
ADVANTAGES OF THE SM-370-HA
- Fully automated: Complete process management, from fabric handling to final welding.
- High efficiency: Reduced cycle times for fast production.
- Operational flexibility: Supports various welding configurations, including complex CAD patterns.
- Customization: Configurable sizes, tools, and accessories to meet specific production needs.
Cutting-Edge Technology for Outstanding Results

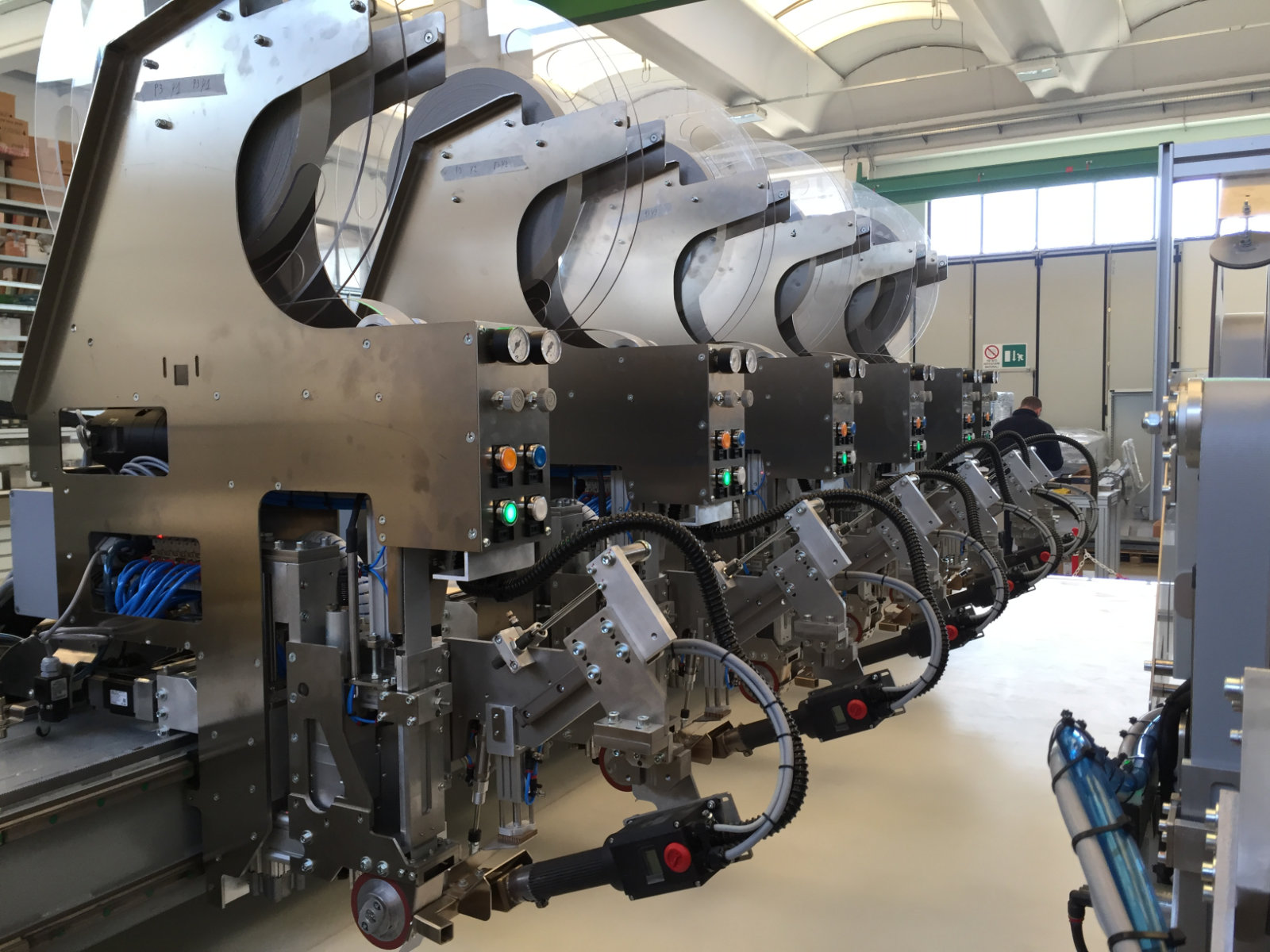

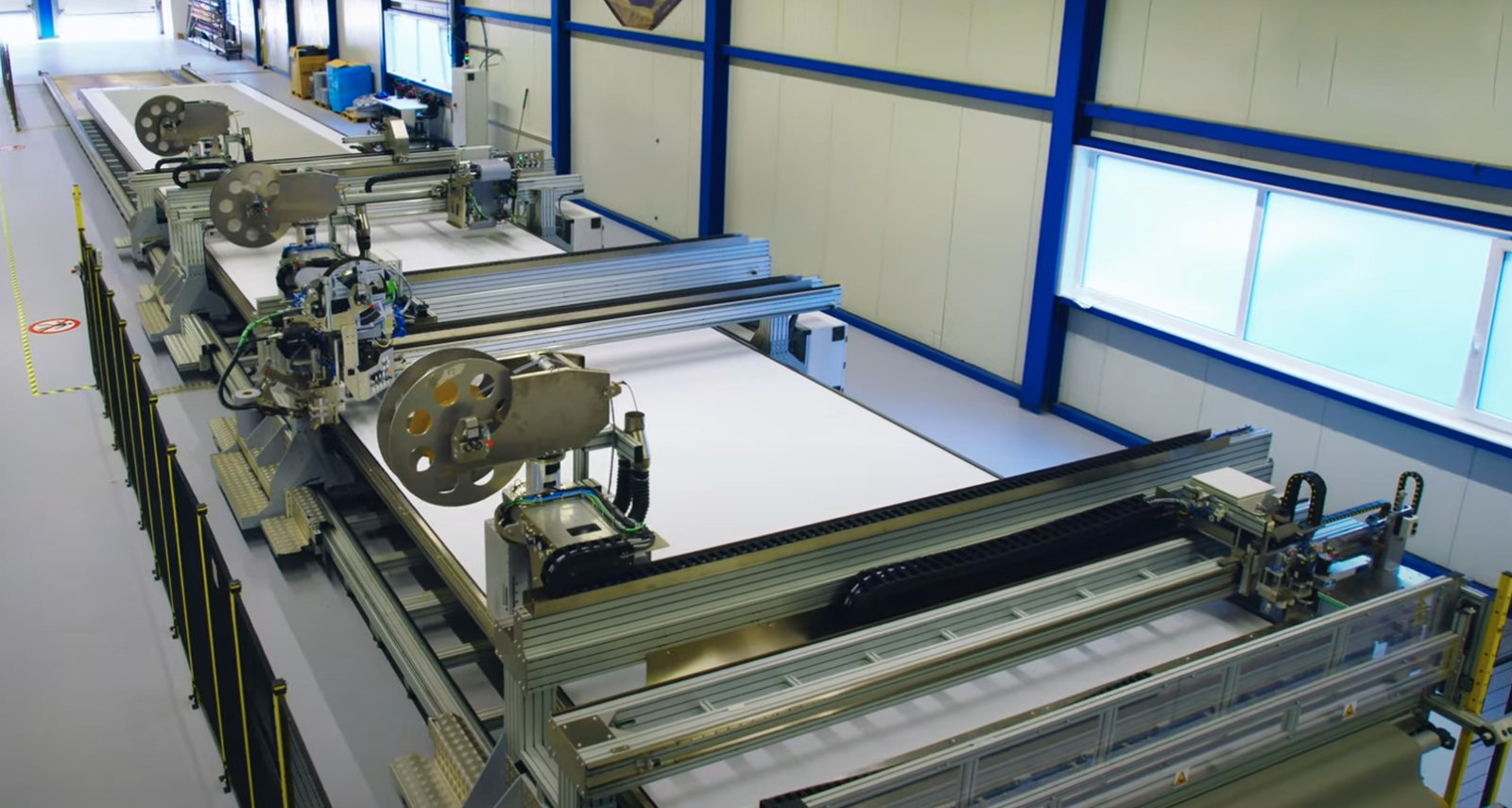

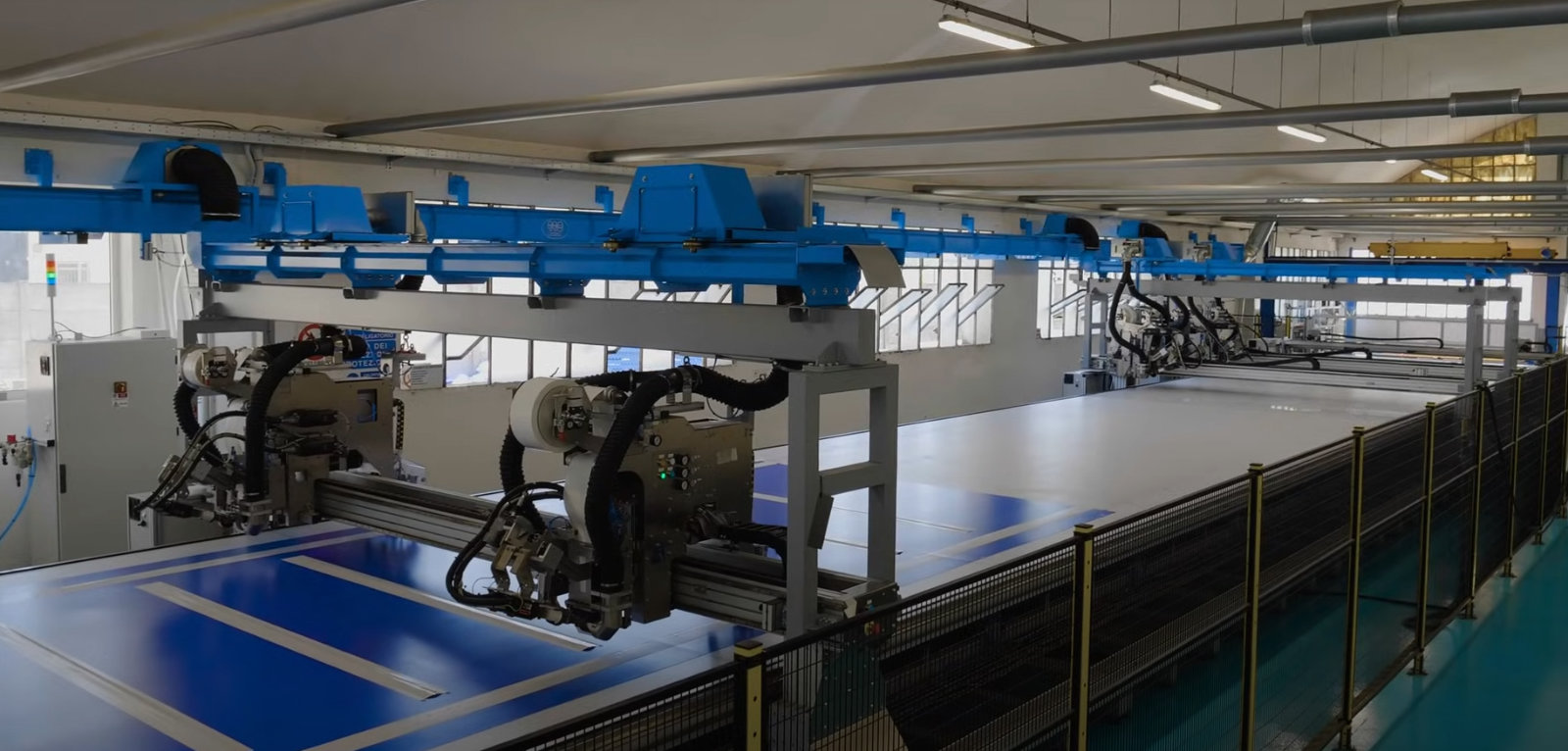

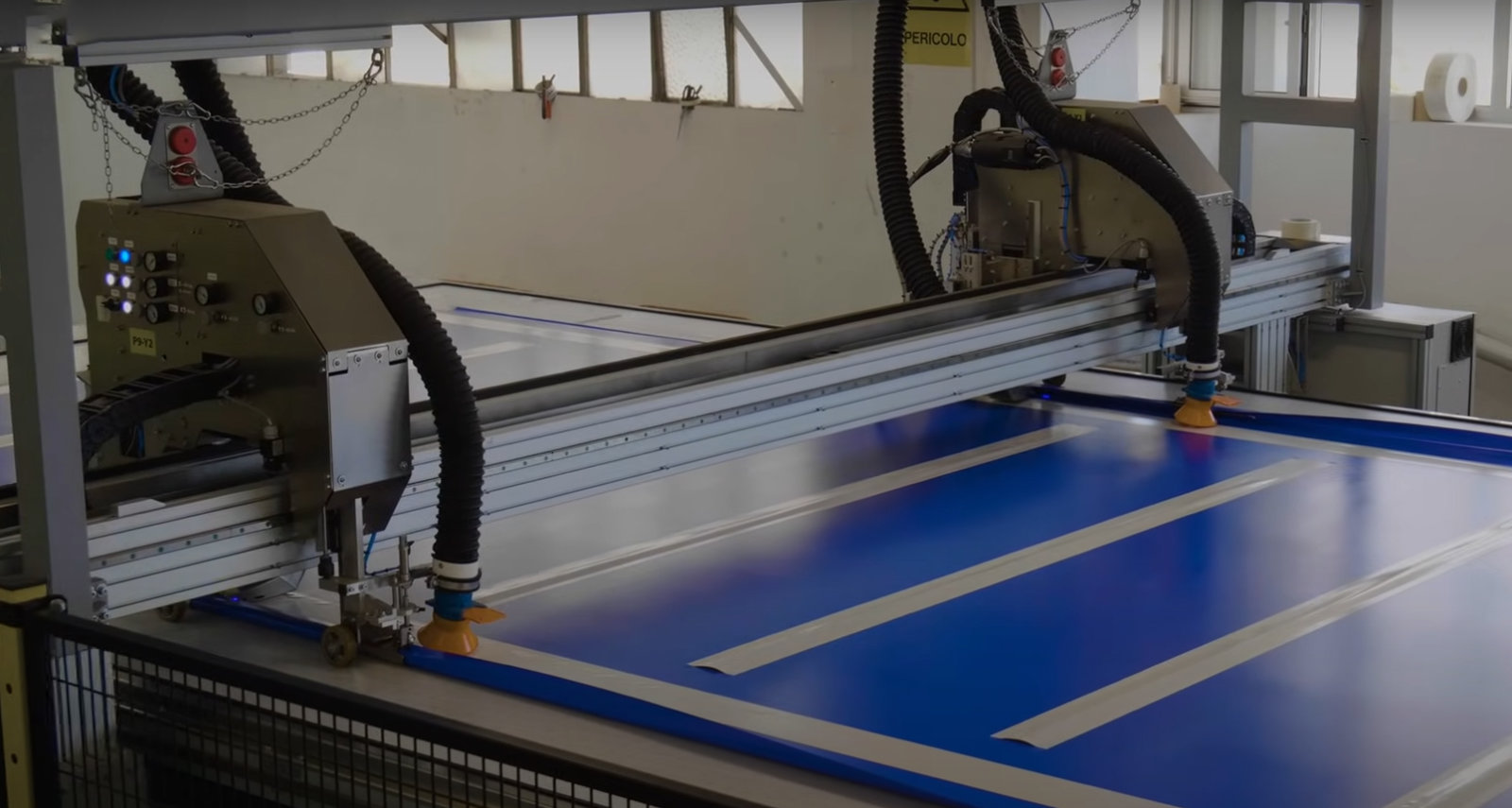

The SM-370-HA is equipped with multiple bridges, allowing the installation of several welding heads, enabling simultaneous operations and high-speed production.
It performs horizontal, vertical, and diagonal welds, following CAD patterns with variable widths.
Superior Reliability & Performance
Designed for intensive use, the SM-370-HA ensures high productivity with minimal manual intervention.
Its robust structure and intelligent process management guarantee high-quality finished products with minimal waste.
Technical Specifications
Tools & Accessories

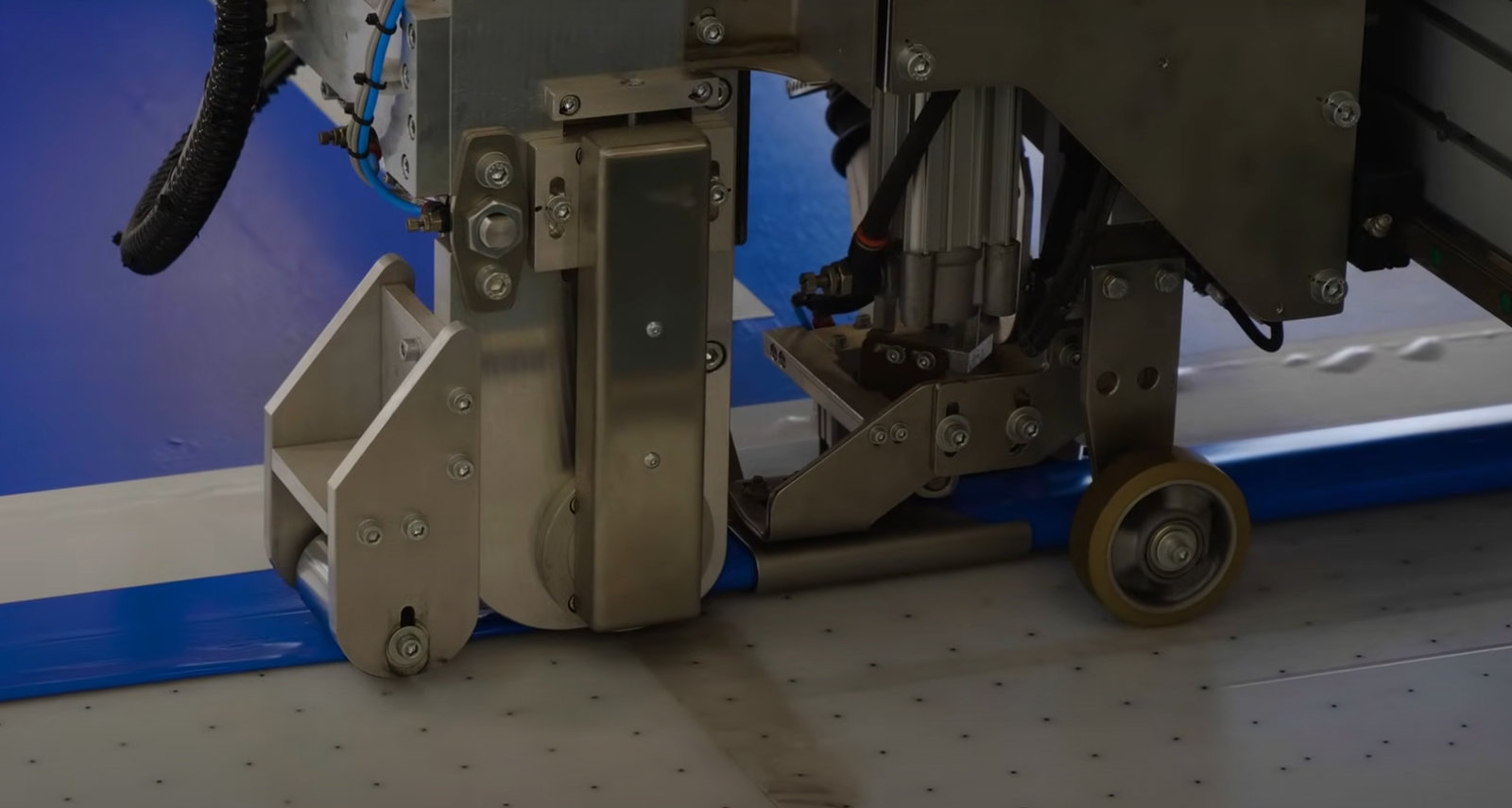

- Welding heads for horizontal and vertical 50 mm belts
- Welding heads for diagonal 50 mm belts
- Welding heads for vertical reinforcing belts (up to 350 mm)
- Welding heads for horizontal reinforcing belts (up to 300 mm)
- Welding heads for horizontal Velcro belts
- Welding heads for horizontal and vertical anti-vandalism belts
- Welding heads for belts with or without butterflies (roofs)
- Welding heads for pockets-with-rope (roofs)
- Marker pen
- Cutting head
- Punching tool
- Motorized cutting blade for the cross cut
- Non-motorized cutting system for the width cut
- Motorized unwinding system for jumbo rolls with edge control and fabric tension adjustment
- Roll holder for non-jumbo rolls with edge control
- Collectors for the extraction of the welding fumes
- Inversion of the air flow from vacuum to create a “flying carpet” effect
- Router for long distance diagnosis, technical assistance and installation of upgrades
Technical specifications and configurations
- Number of bridges and welding heads customized according to curtain and roof configurations
- Jumbo rolls up to 1000 kg.
- Maximum welding area: 3.900 mm x 16.500 mm.
- Maximum bridge moving speed: 30 m/min.
Software
- EasyWork Xtreme
- Customized macros
